Specifications
SPECIFICATIONS: MACHINE SCREWS

Binding Slotted, Binding Slotted: Tolerance on Length,
Binding Slotted: External Threads Class 2A

Fillister Phillips , Fillister Phillips: Tolerance on Length,
Fillister Phillips: External Threads Class 2A

Fillister Slotted, Fillister Phillips: Tolerance on Length,
Fillister Phillips: External Threads Class 2A

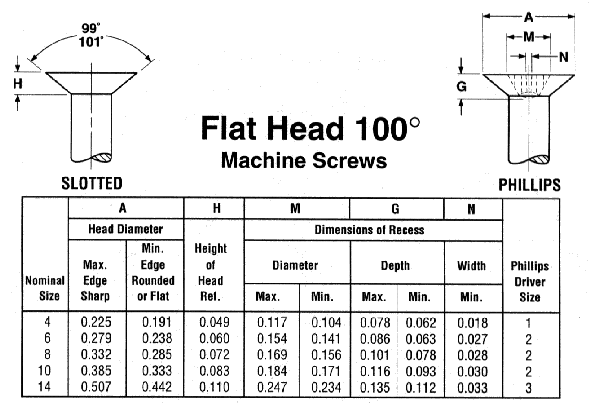

Flat Phillips 100 Degree,
Flat Phillips 100 Degree: Tolerance on Length,
Flat Phillips 100 Degree: External Threads Class 2A

Flat Slotted, Flat Slotted: Tolerance on Length,
Flat Slotted: External Threads Class 2A

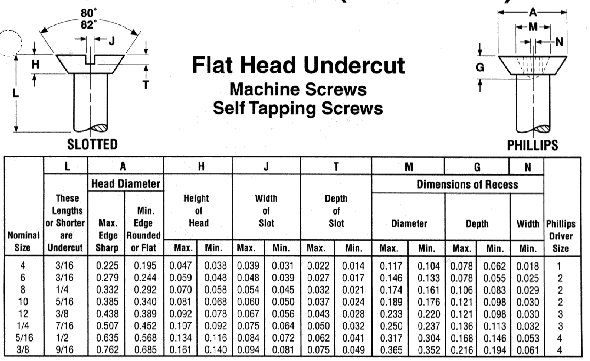

Flat Undercut Phillips,
Flat Undercut Phillips: Tolerance on Length,
Flat Undercut Phillips: External Threads Class 2A

Flat Undercut Slotted,
Flat Undercut Slotted: Tolerance on Length,
Flat Undercut Slotted: External Threads Class 2A

Hex Slotted, Hex Slotted: Tolerance on Length,
Hex Sloted: External Threads Class 2A

Hex Unslotted, Hex Unslotted: Tolerance on Length,
Hex Unslotted: External Threads Class 2A

Hex Washer Slotted,
Hex Washer Slotted: Tolerance on Length,
Hex Washer Slotted: External Threads Class 2A

Hex Washer Unslotted,
Hex Washer Unslotted: Tolerance on Length,
Hex Washer Unslotted: External Threads Class 2A

Oval Phillips, Oval Phillips: Tolerance on Length,
Oval Phillips: External Threads Class 2A

Oval Slotted, Oval Slotted: Tolerance on Length,
Oval Slotted: External Threads Class 2A

Pan Combination,
Pan Combination: Tolerance on Length,
Pan Combination: External Threads Class 2A

Pan Phillips, Pan Phillips: Tolerance on Length,
Pan Phillips: External Threads Class 2A

Pan Slotted, Pan Slotted: Tolerance on Length,
Pan Slotted: External Threads Class 2A

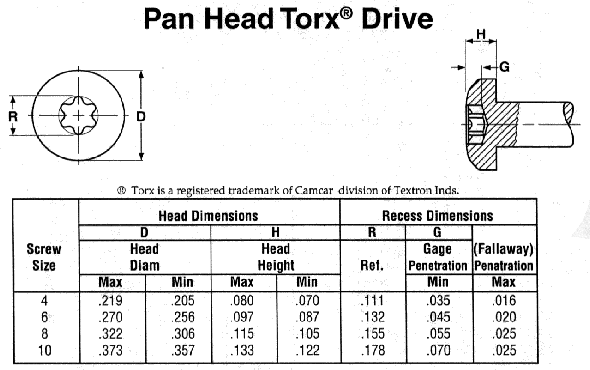

Pan Torx, Pan Torx: Tolerance on Length,
Pan Torx: External Threads Class 2A

Round Phillips, Round Phillips: Tolerance on Length,
Round Phillips: External Threads Class 2A

Round Slotted, Round Slotted: Tolerance on Length,
Round Slotted: External Threads Class 2A

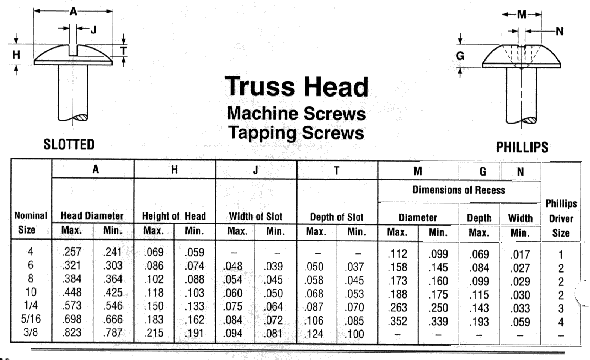

Truss Phillips, Truss Phillips: Tolerance on Length,
Truss Phillips: External Threads Class 2A

Truss Slotted, Truss Slotted: Tolerance on Length,
Truss Phillips: External Threads Class 2A
